The OctoPi™ System is an innovative, hand-specific fixation system designed to give surgeons the ability to customize repair constructs intraoperatively. Built around a family of all-suture anchors in three sizes (1.4, 1.7 and 2.4) the system delivers unicortical fixation utilizing very small drill holes minimizing bone removal, making it well-suited to the small bones of the hand and wrist.
The OctoPi™ System by Field Orthopaedics supports multiple procedures including Scapholunate repairs, UCL Thumb repair and finger ligament repairs. Three complementary implants - the OctoBridge™, OctoExtend™ and OctoAnchor™ - can be used alone or linked together to build the construct each case demands.
Next Generation Hand Ligament Repair
Low-Profile All-Suture Fixation
Small drill hole allows for unicortical fixation.
Short drill depth minimizes bone removal.
All-suture material, no solid PEEK anchor body1
Effective Hand-Specific, Customisable Constructs
Innovative hand-specific fixation system.
Allows surgeons to customize repair constructs intraoperatively.
Three implant variants (OctoBridge, OctoExtend, OctoAnchor) can be used stand-alone or linked to increase repair construct strength.
Easy Intuitive Insertion
Intuitive insertion technique2.
Needles attached for soft tissue repair.
Available with pre-loaded high-strength suture (OctoAnchor is double-loaded).
Multiple Variations of the OctoPi System
The OctoPi™ System has three products, with more in development.
OCTOBridge™ features

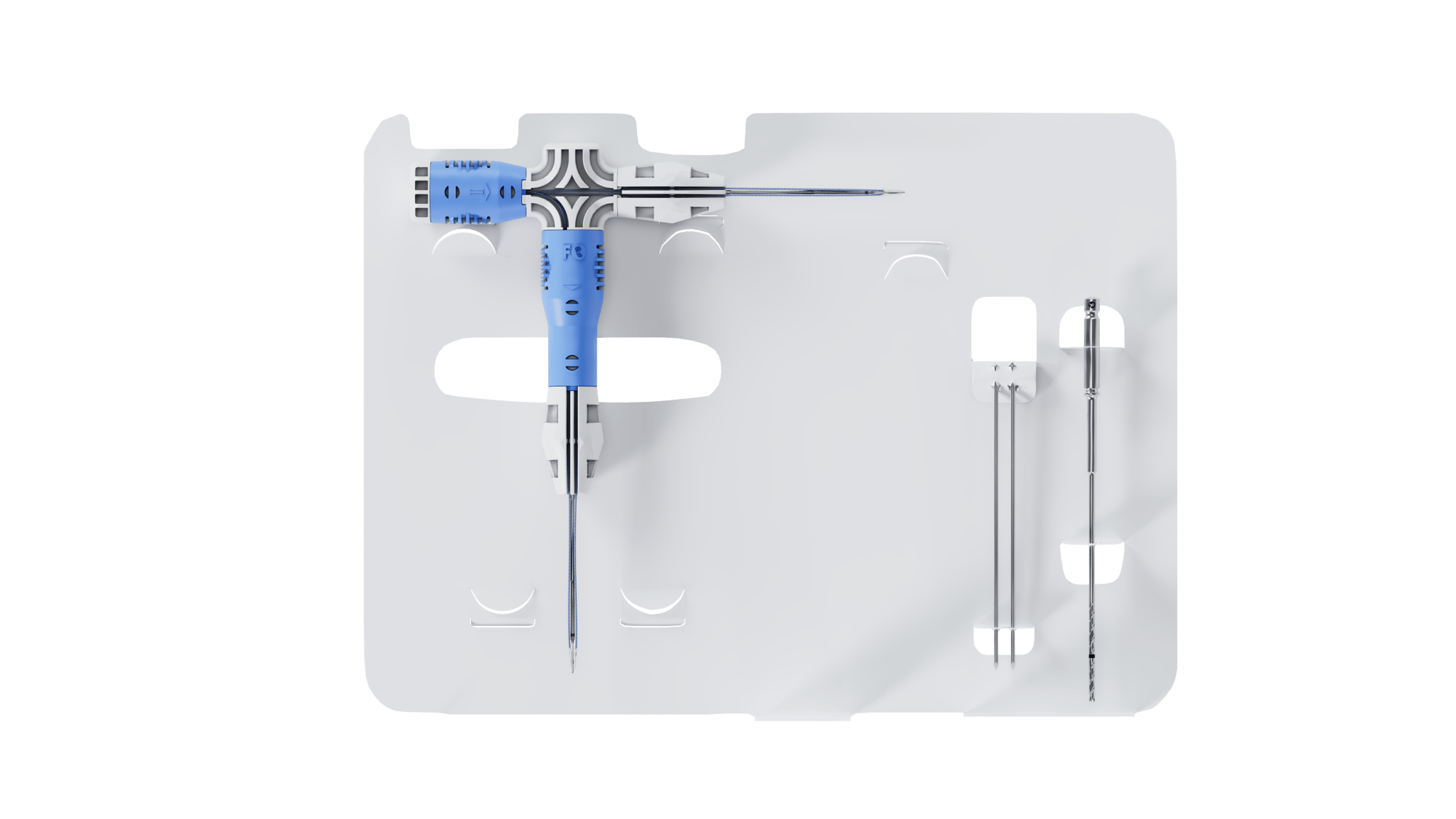

An innovative double-anchor design on a T-handle that links across bones or augments ligaments in a single deployment.
Available in 1.4, 1.7 and 2.4.
The 1.7 OctoBridge is designed specifically for scapholunate repair, helping to reduce the SL interval.
OCTOExtend™ features

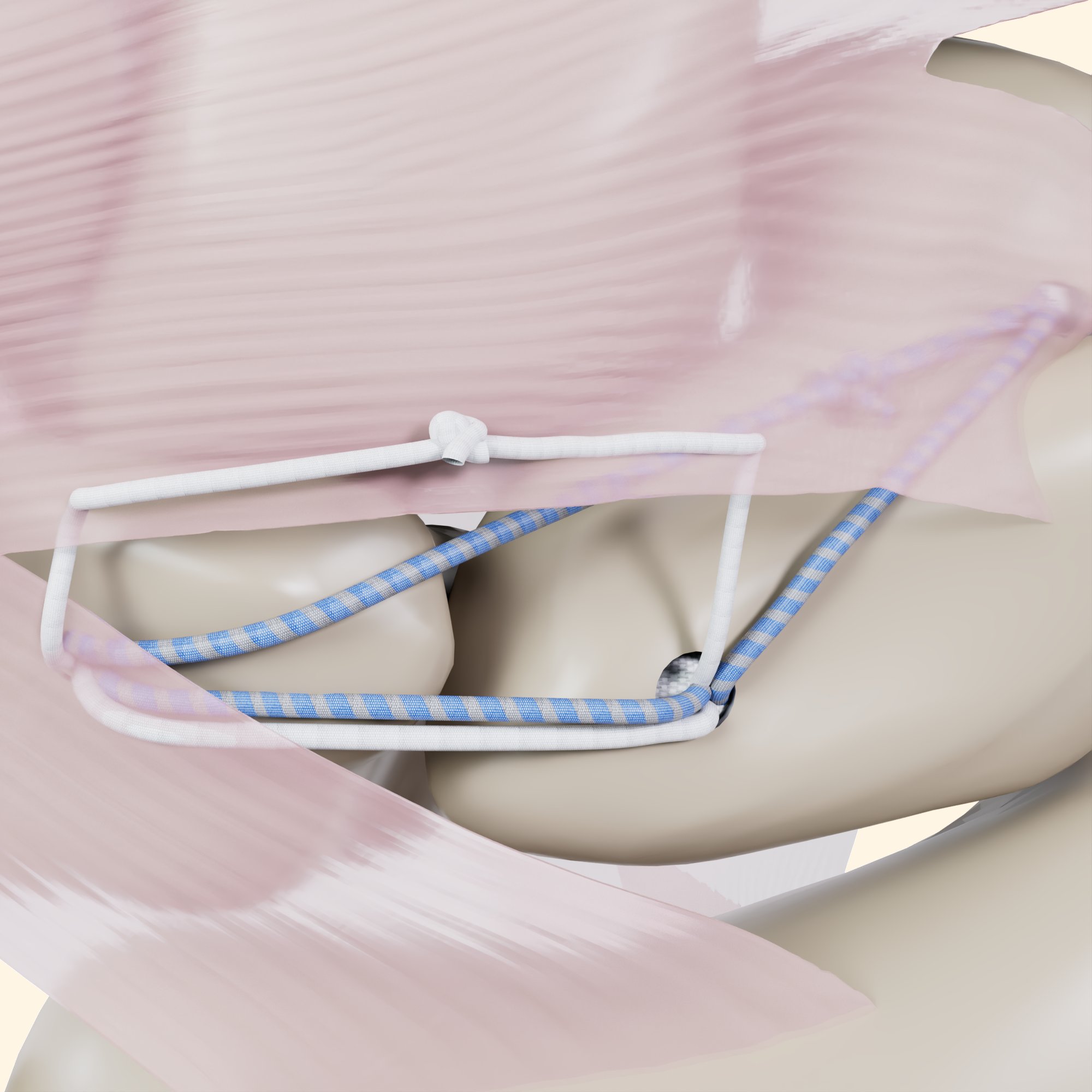

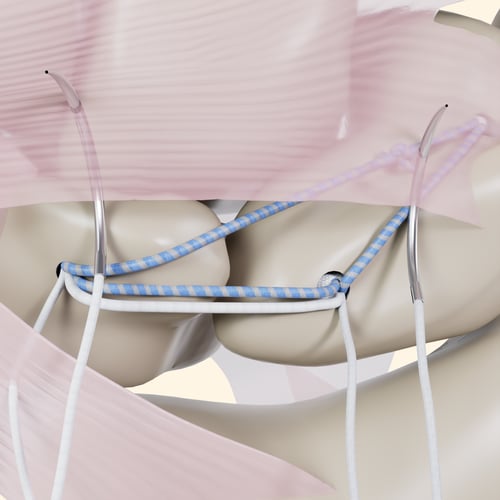

A companion anchor preloaded with 2-0 suture used to shuttle additional sutures through an anchor.
Available in 1.7 and 2.4.
Can be used stand-alone or to link other anchors to increase repair strength.
OCTOAnchor™ features
The core all-suture anchor of the system, double-loaded with high-strength suture.
Available in 1.4, 1.7 and 2.4.
Short drill lengths: 12 mm for 1.4 and 1.7; 17 mm for 2.4.
Meet the Octopi Family
OCTOBridge™
Linked double-anchor fixation for controlled ligament reduction.
OCTOExtend™
Companion anchor that expands repair constructs.
OCTOAnchor™
Compact all-suture anchor for reliable ligament fixation.
Indications at a Glance
The OctoPi™ System supports multiple hand and wrist procedures, including:
Scapholunate reconstruction

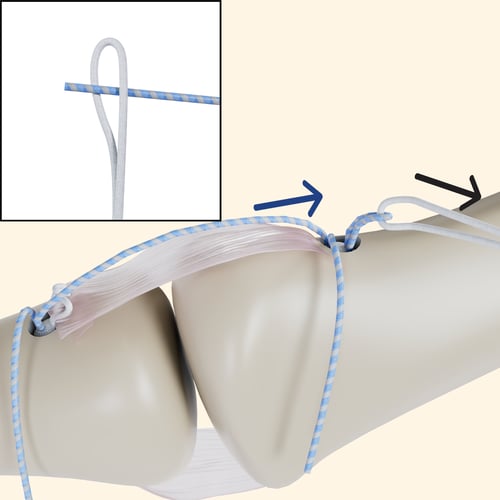

UCL Thumb repair
Finger ligament repairs
Technical Guide Points

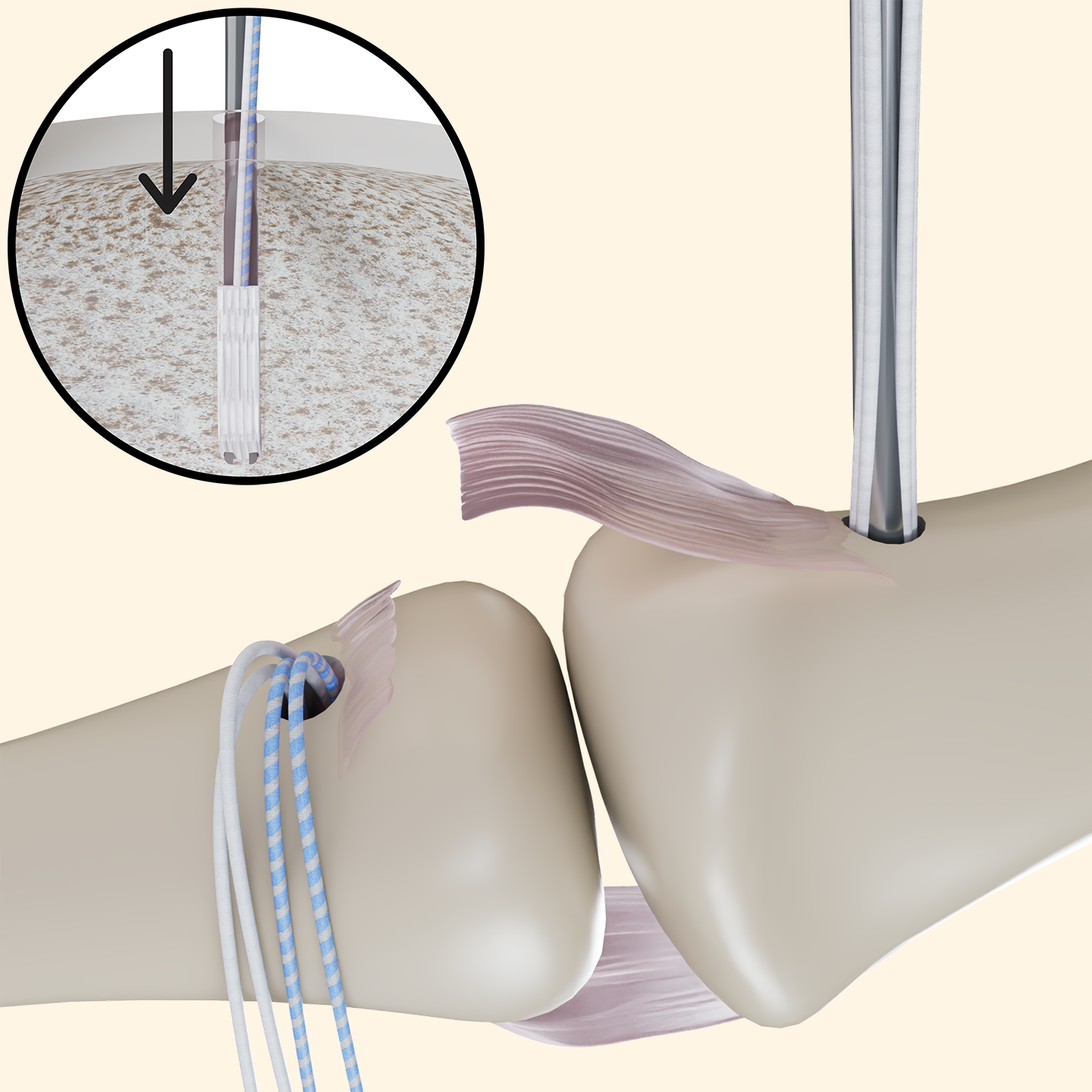

Drill or K-wire must be drilled a minimum distance into bone before anchor deployment. Align the anchor with the trajectory of the pilot hole prior to insertion. Use gentle mallet taps - avoid excessive impaction. Bury the laser line on the anchor inserter below the bone cortex. Remove the blue clips and unwrap the sutures before withdrawing the inserter. Pull all suture limbs to fully set the anchor.
Chen et al. Osteolysis Following the Use of Polyetheretherketone Suture Anchors in Hand and Wrist Surgery: A Preliminary Study. Journal of Hand Surgery 2025 Feb;50(2):235.e1-235.e6. doi: 10.1016/j.jhsa.2023.05.024 PMID: 37542497
